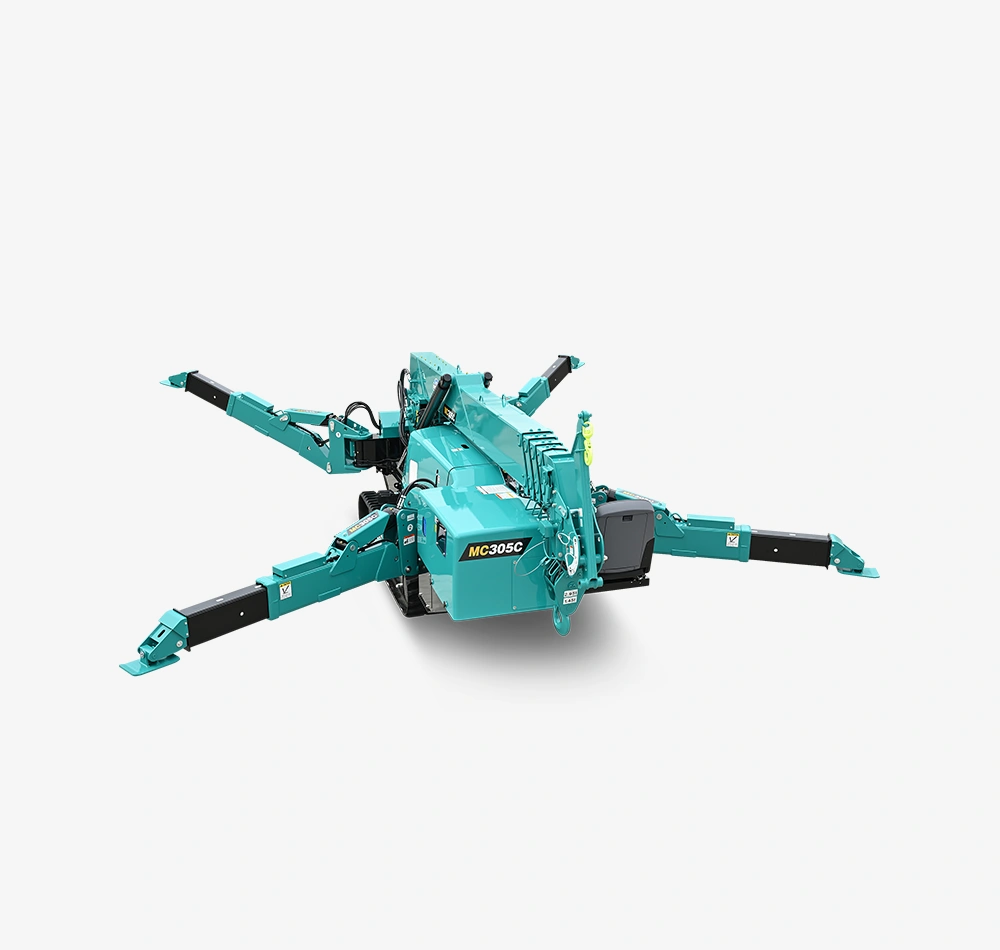

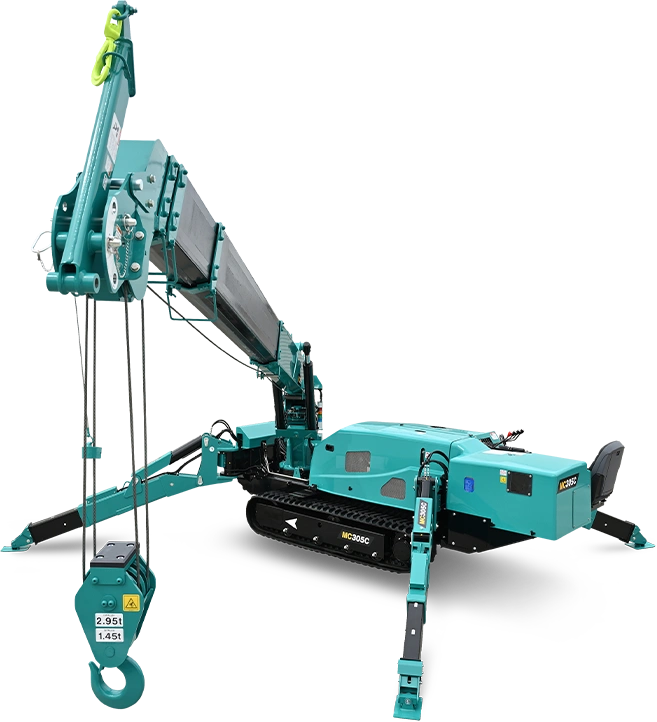

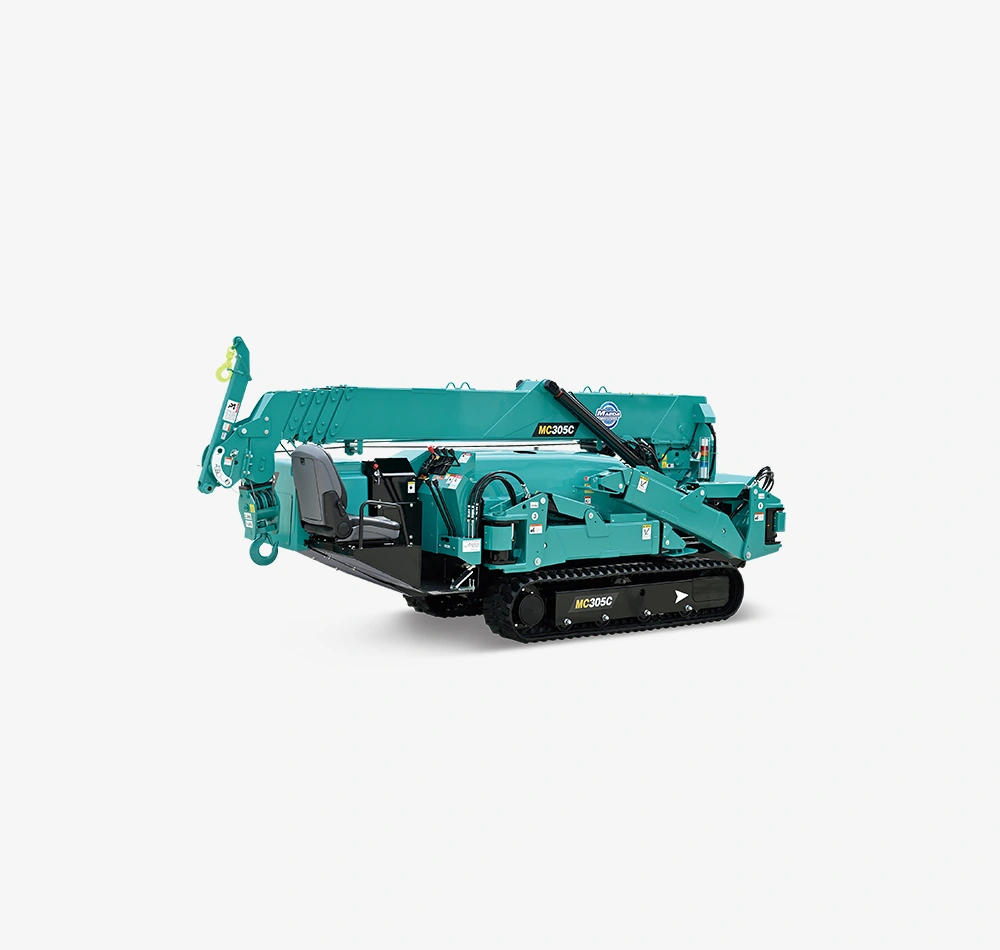

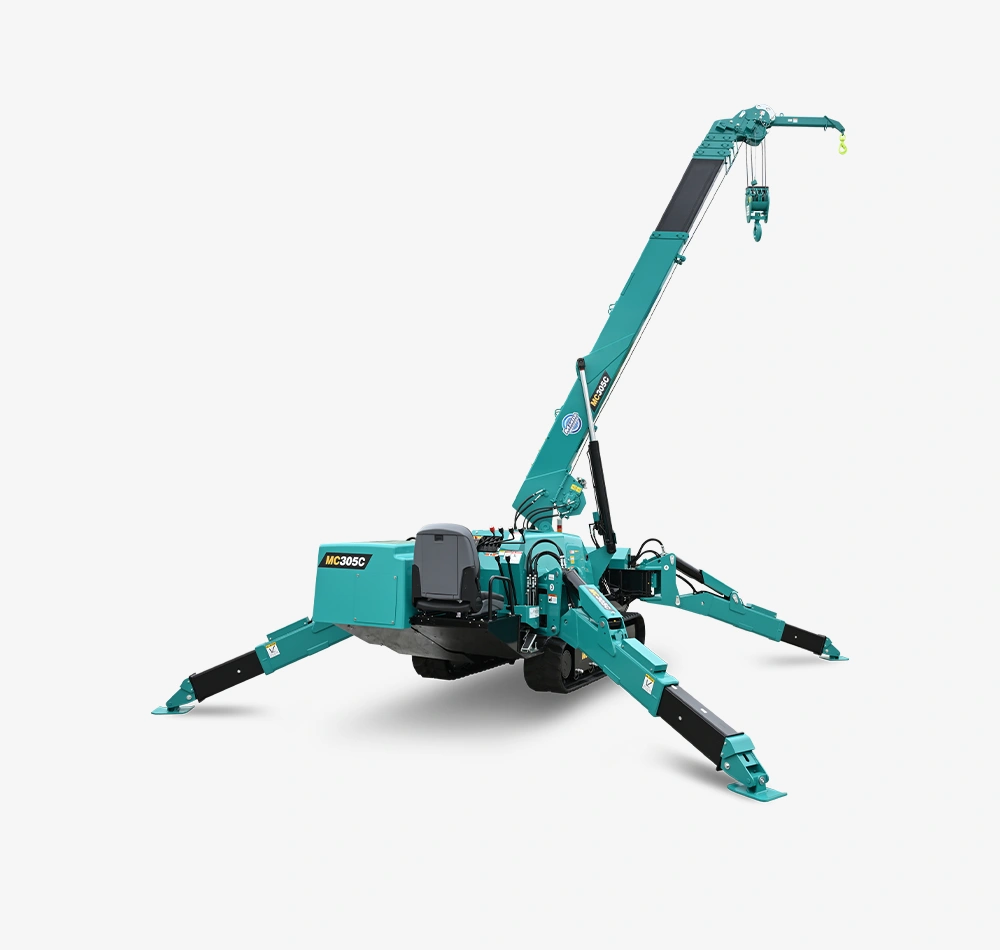

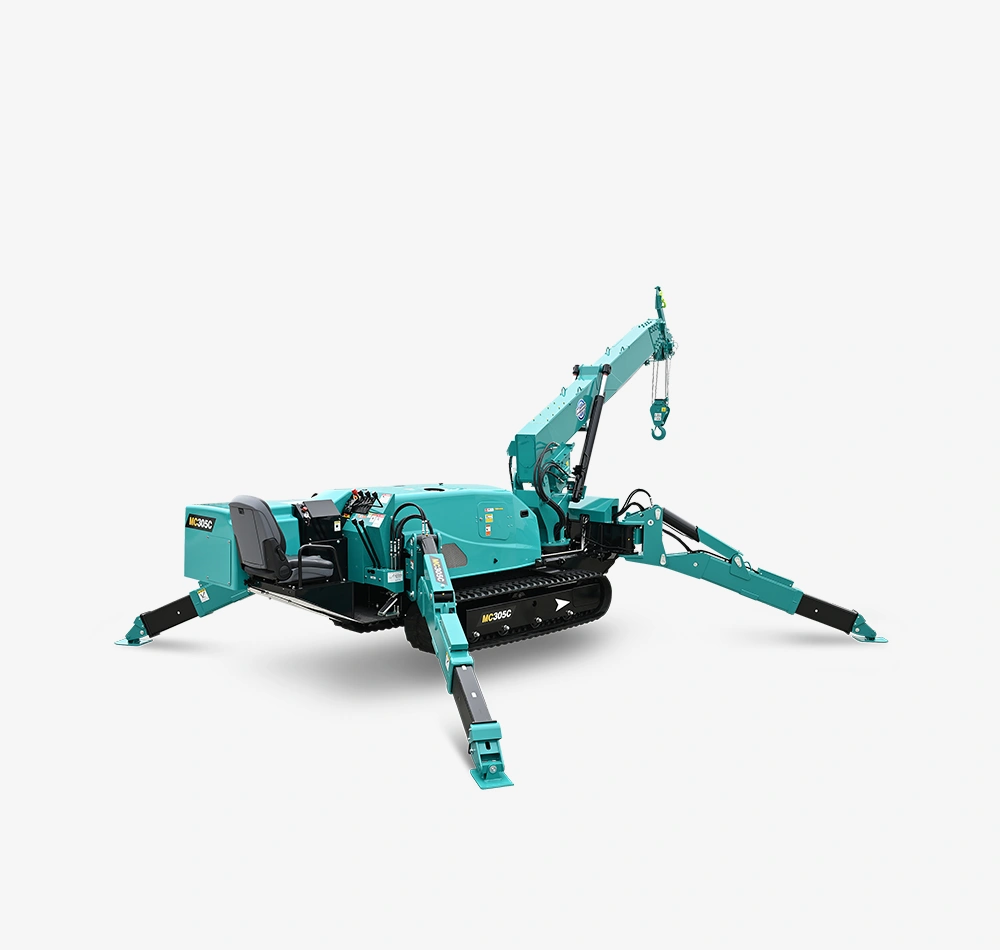

Maeda MC305

MC305C-5

Crane capacity

2.98t x 2.5m

(6,560 lb x 8.0 ft)

Max. lifting height (on the ground)

12.52m

(41.0 ft)

Max. working radius

12.16m x 0.26t

(39.8 ft x 570 lb)

Max. lifting height (underground)

-16.09m (4 falls)

(-53.0 ft)

Request A Quote Catalog Download

Technical Data

Metric (CE)

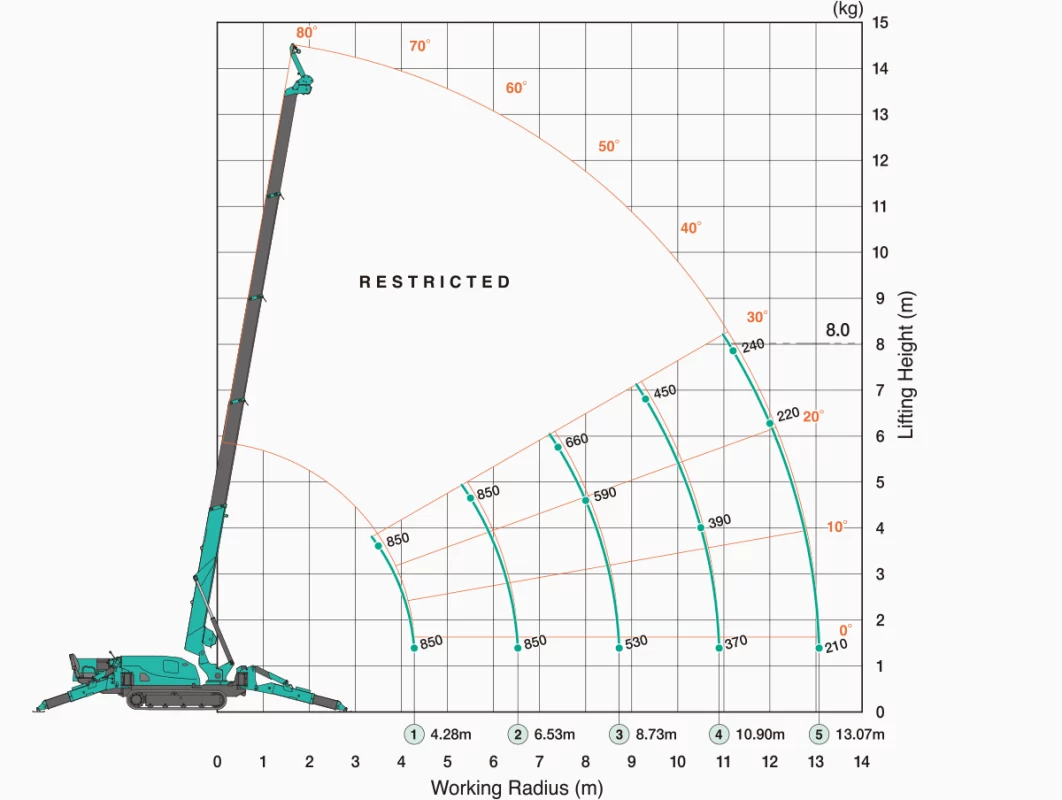

Working Range Chart

Outriggers Position : Max

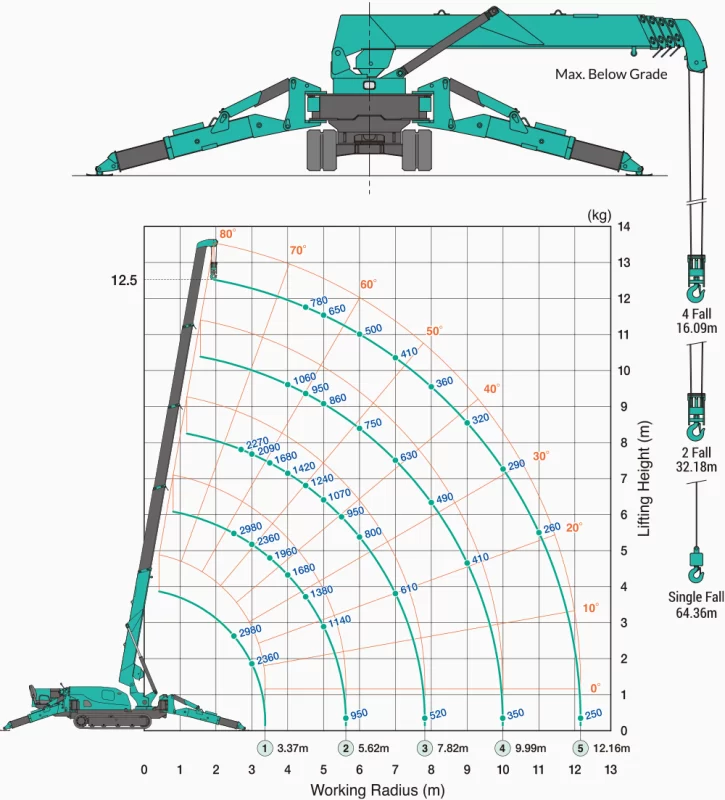

Outriggers Position : Mid

Outriggers Position : Min

850kg Searcher Hook Offset Position
SH1 (Outriggers Position : Max)

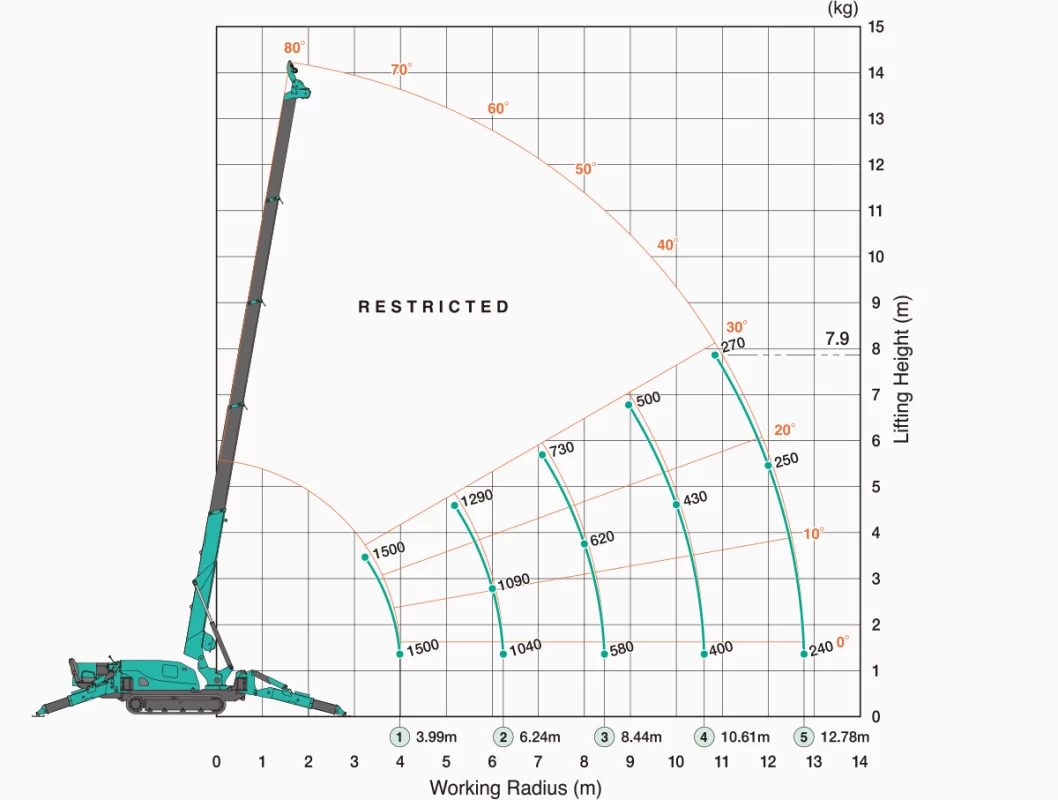

1.5t Searcher Hook Offset Position
SH1 (Outriggers Position : Max)

Specifications

Crane Capacity 2.98t x 2.5m
Max. Working Radius 12.16m x 0.26t
Max. Lifting Height 12.52m
Max. Reach Below Ground -16.09m (4 falls)
Outrigger Max. Extended Width (outer dims) (Lateral)5,170mm x (Front)4,808mm x (Rear)4,704mm
Travel Speed 0-2.8km/h
Travel Ground Pressure (MC305CWM-5) 58.2kpa [0.59kgf/cm2]
Travel Ground Pressure (MC305CWME-5) 60.2kpa [0.61kgf/cm2]
Engine YANMAR 3TNV80F-SNMB / Diesel
Engine Rated Output 15.2kw/2,500rpm
Electric Motor 5.5kw, 3Phase, 380V

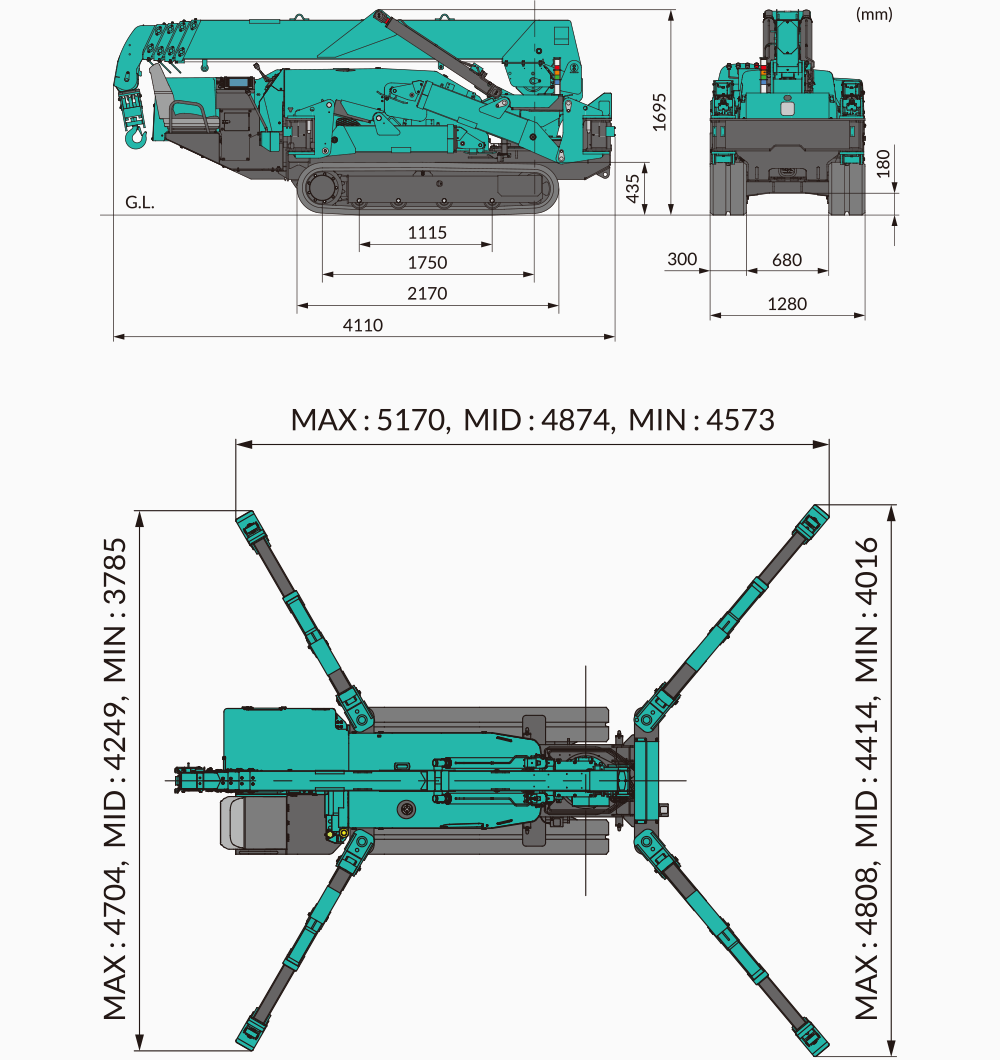

Dimensions 4,110mm (L) x 1,280mm (W) x 1,695mm (H)
Machine Weight 3,970kg (4,110kg with electric motor)

Dimensions

Imperial (US)

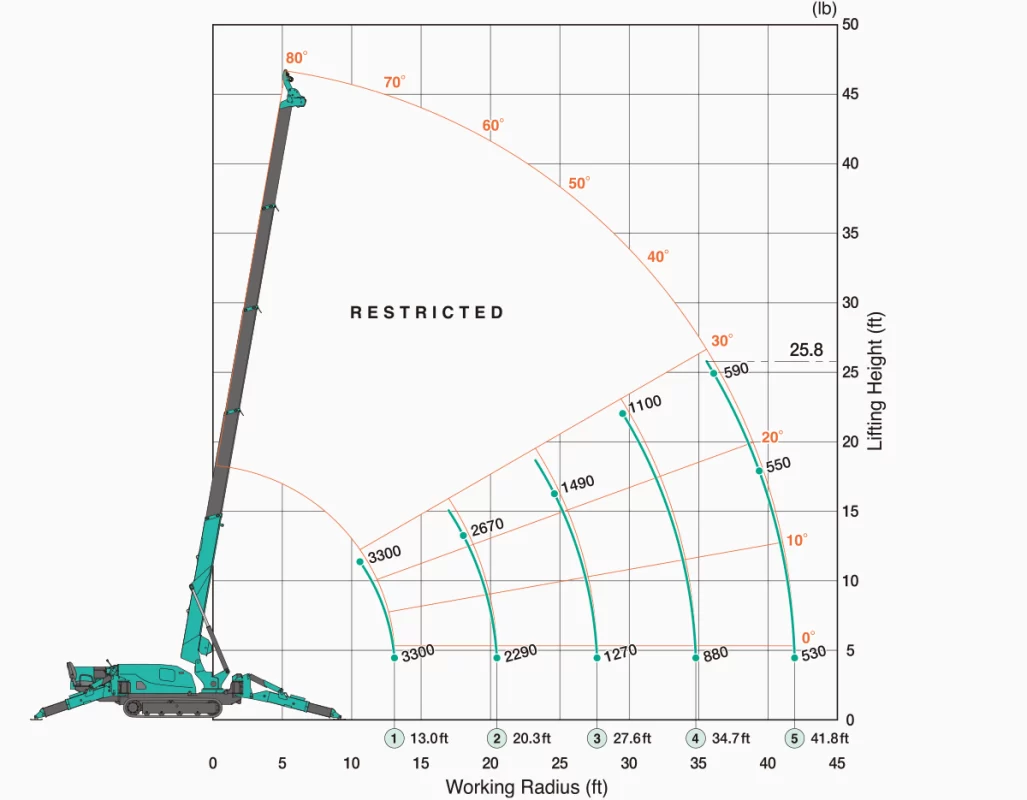

Working Range Chart

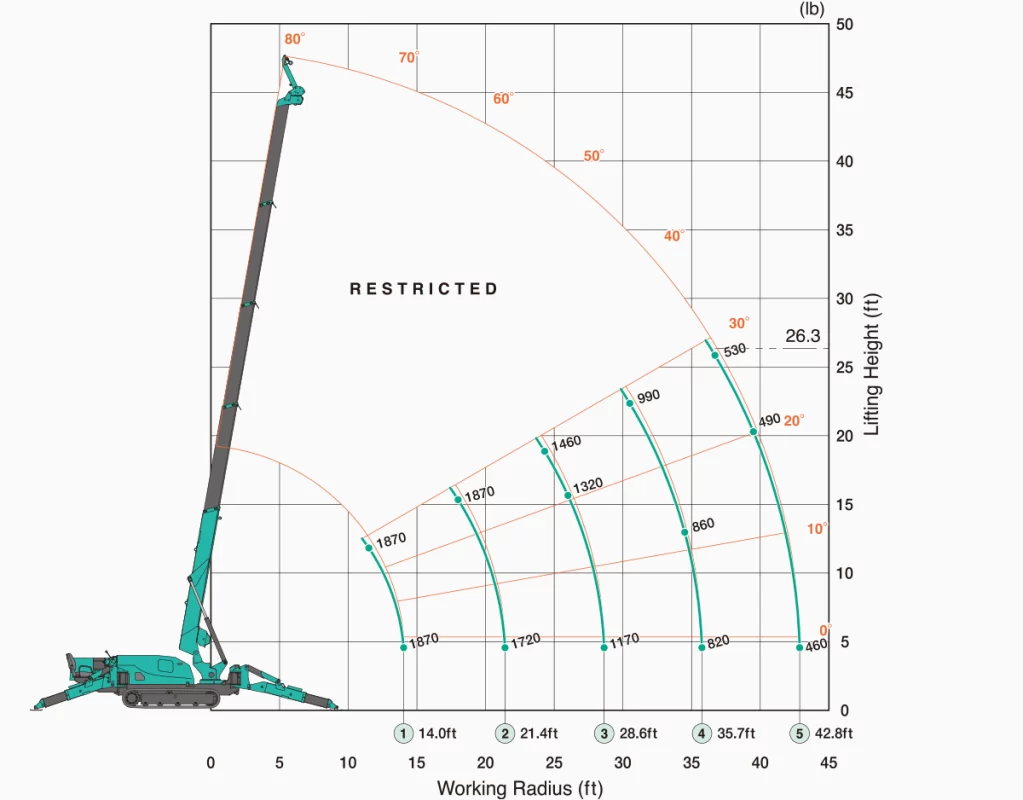

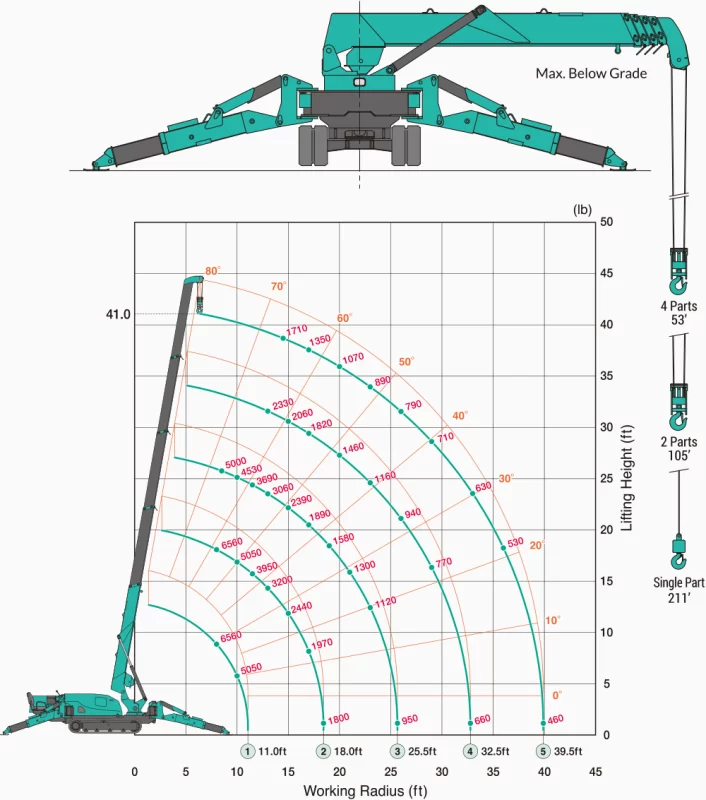

Outriggers Position : Max

Outriggers Position : Mid

Outriggers Position : Min

1,870 lb Searcher Hook Offset Position
SH1 (Outriggers Position : Max)

3,300 lb Searcher Hook Offset Position
SH1 (Outriggers Position : Max)

Specifications

Crane Capacity 6,560lb x 8.0′
Max. Working Radius 39.8′ x 570lb
Max. Lifting Height 41.0′
Max. Reach Below Ground -53.0′ (4 parts of line)
Outrigger Max. Extended Width (outer dims) (Lateral)16’12″x (Front)15’9″ x (Rear)15’5″
Travel Speed 0-1.7mph
Travel Ground Pressure (MC305CWM-5) 8.44PSI
Travel Ground Pressure (MC305CWME-5) 8.73PSI
Engine YANMAR 3TNV80F-SNMB / Diesel
Engine Rated Output 20.38hp (15.2kw)/2,500rpm
Electric Motor 5.5kw, 3Phase, 230V
Dimensions 13’6″ (L) x 4’2″ (W) x 5’7″ (H)
Machine Weight 8,750lb (9,060lb with electric motor)

Dimensions

Key Features:

  • Automatic counterweight detection
  • Operator settable maximum working height
  • Maximum working radius
  • Maximum front axle weight
  • Rigging limits
  • Percentage of rated capacity
