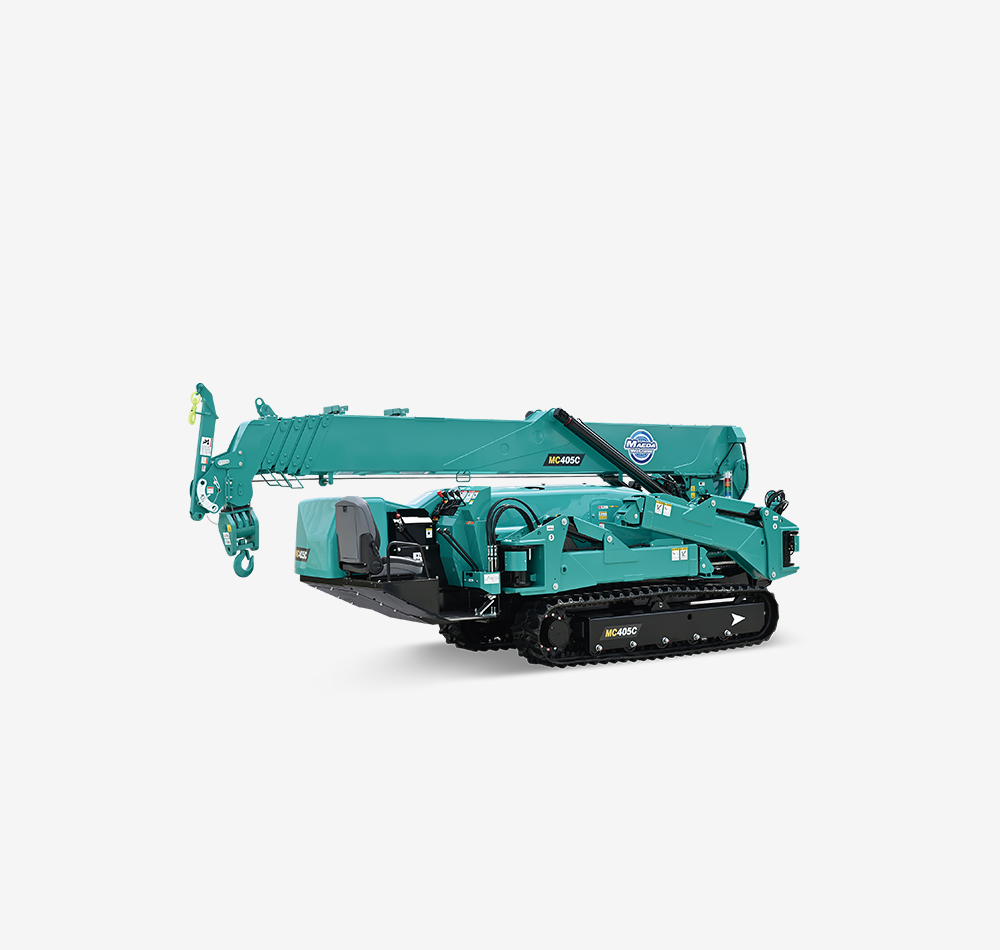

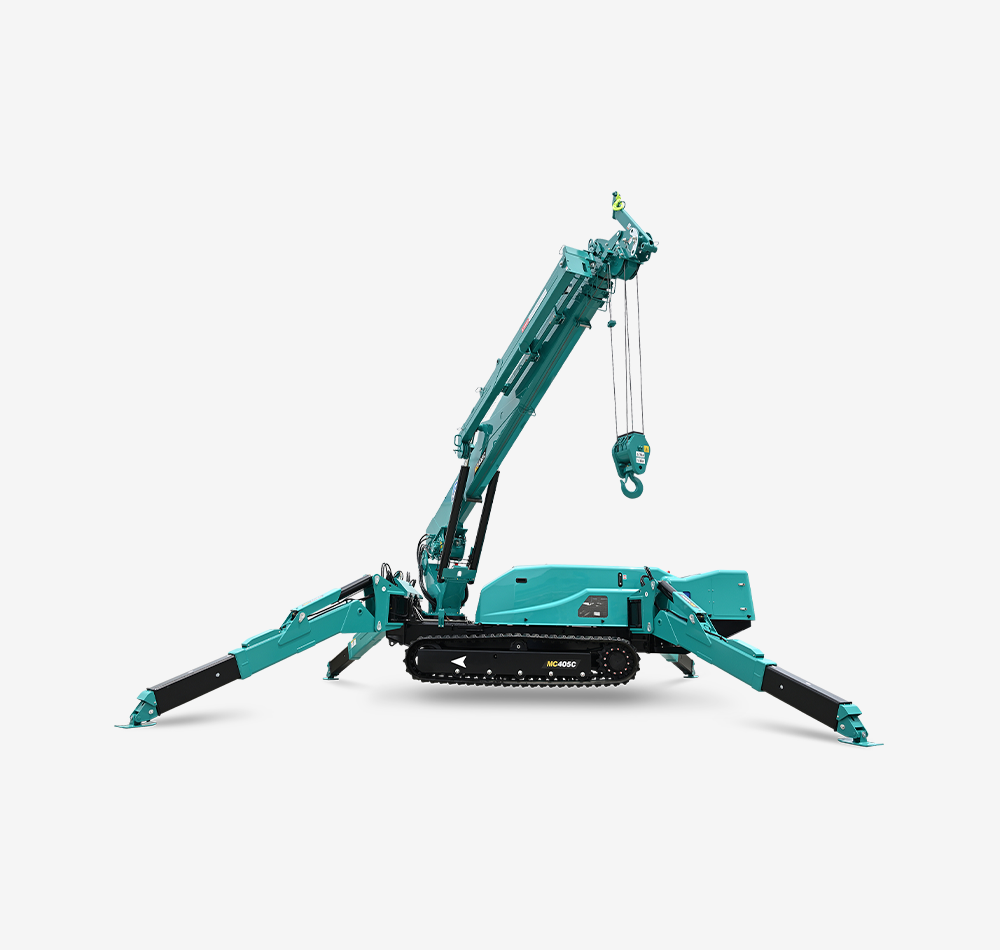

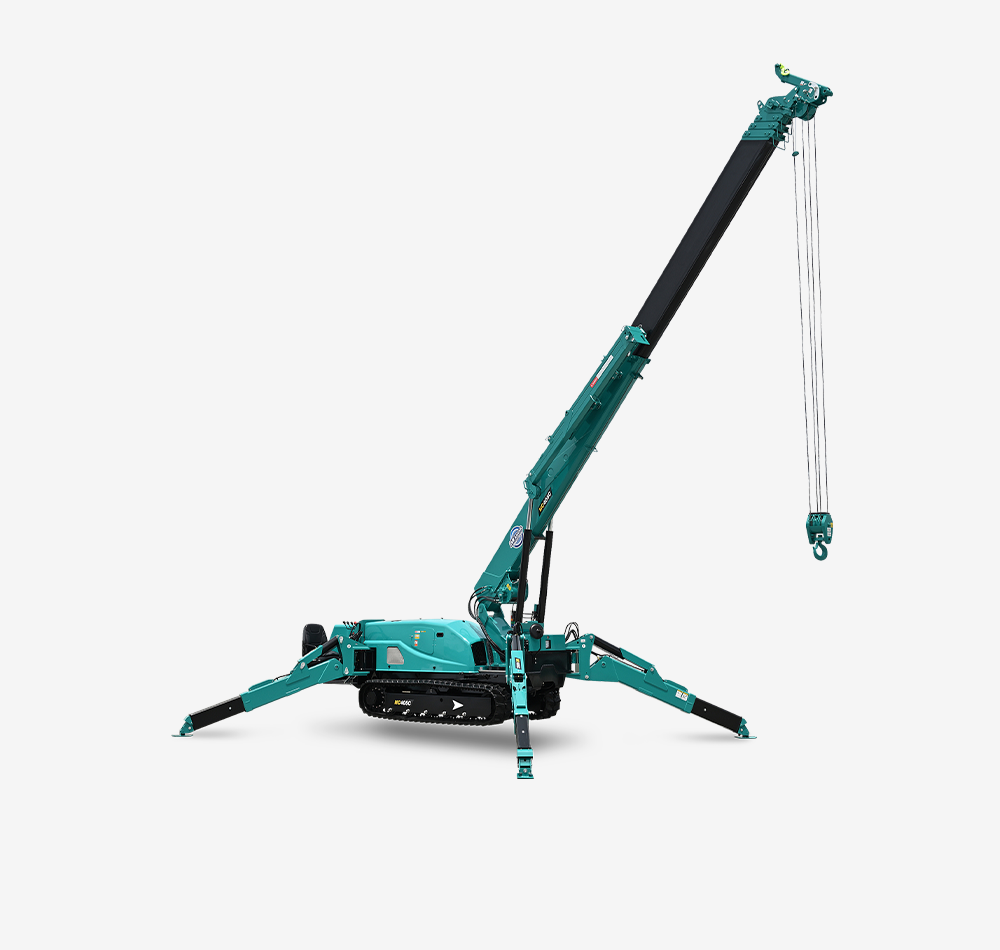

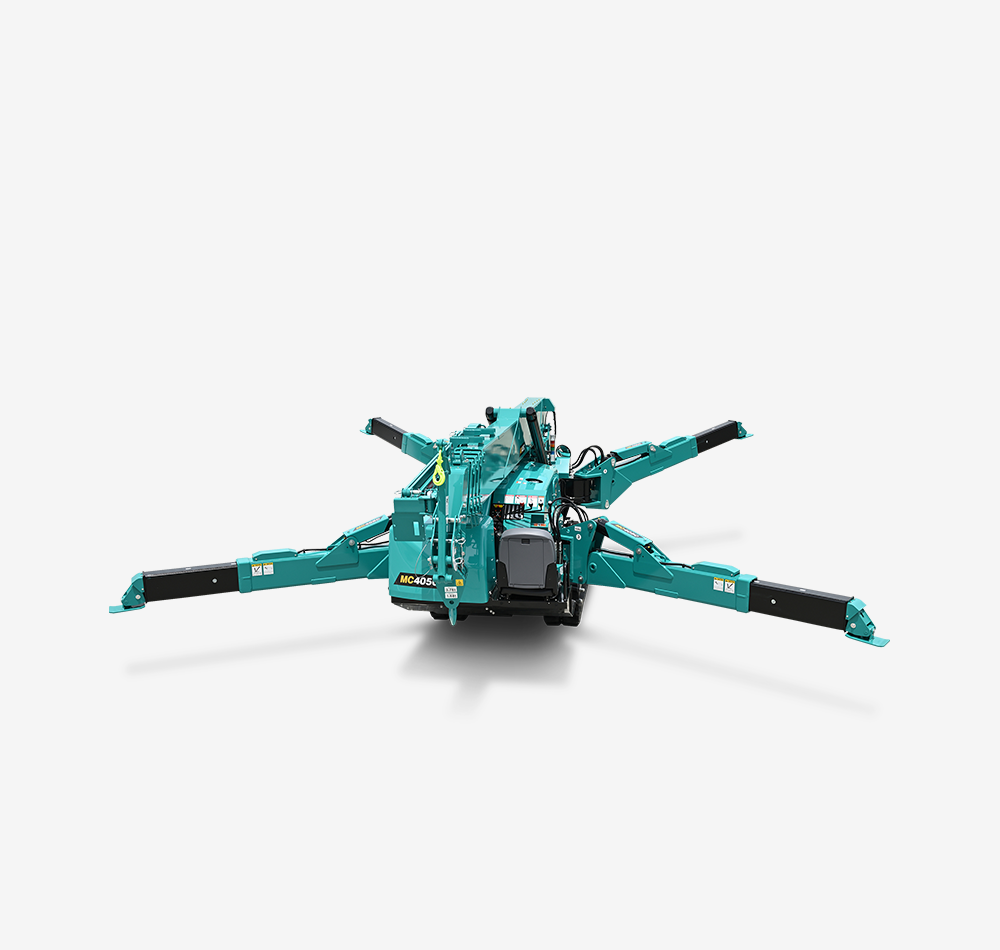

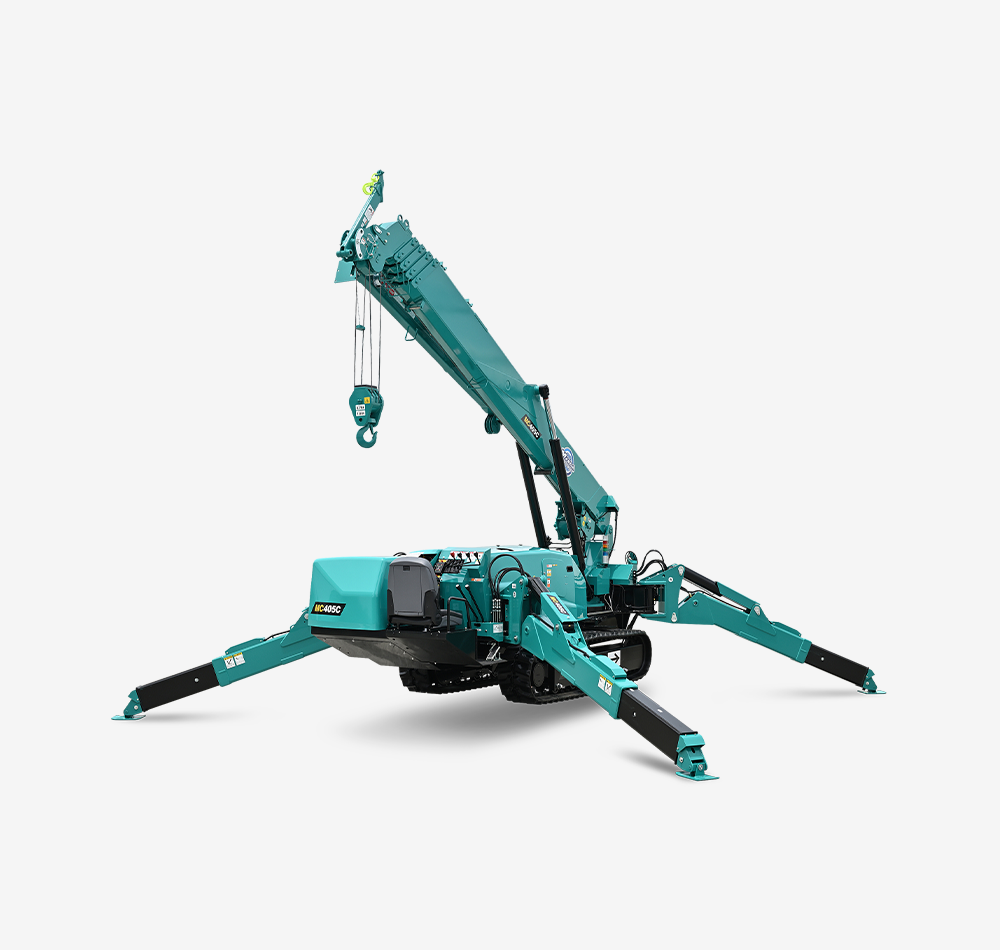

Maeda MC405

MC405C-5

Crane capacity

3.83t x 2.7m

(8,480 lb x 8.5 ft)

Max. lifting height (on the ground)

16.8m 20.7m

with fly jib

(55.1 ft) (67.9 ft with fly jib)

Max. working radius

16m x 0.21t

(52.4 ft x 500 lb)

Max. lifting height (underground)

-20.5m (4 falls)

(-67 ft)

Request A Quote Catalog Download

Technical Data

Metric (CE)

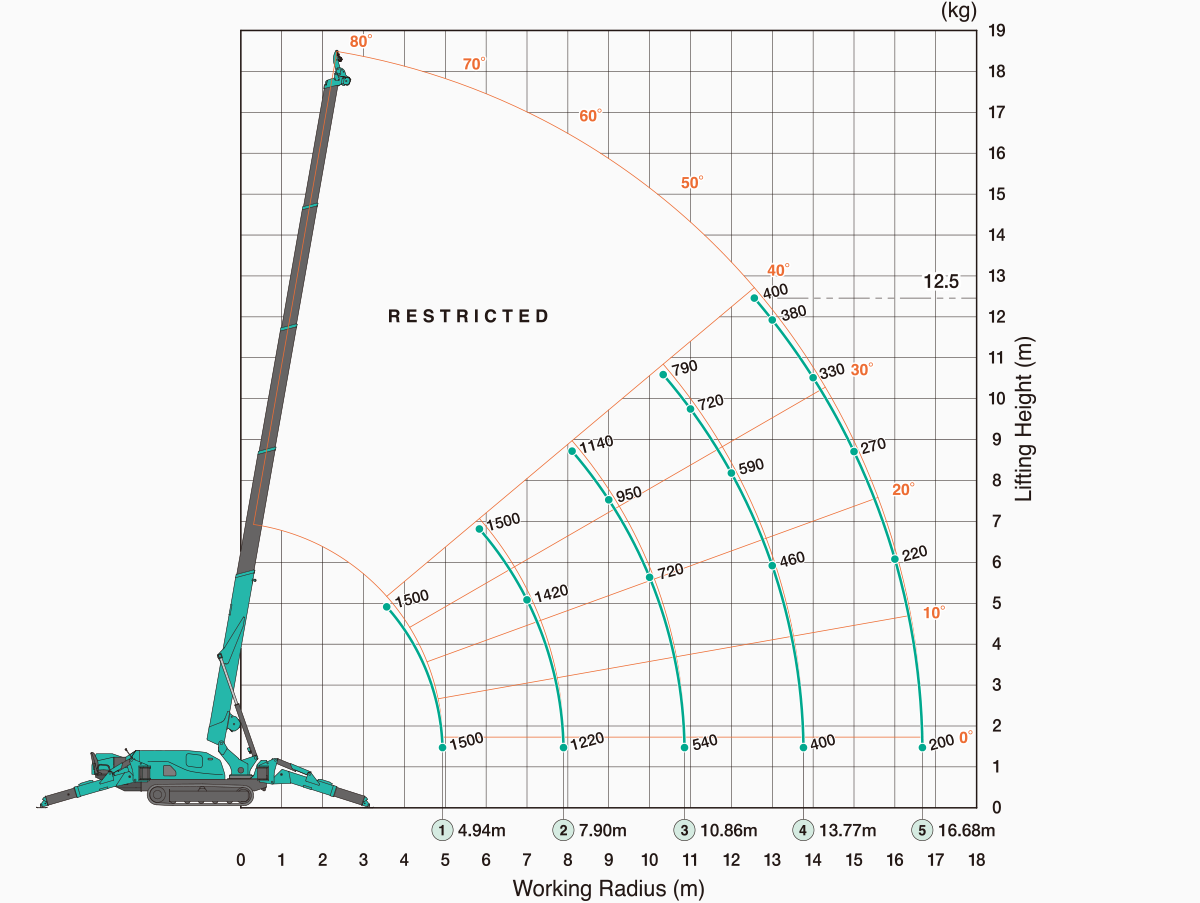

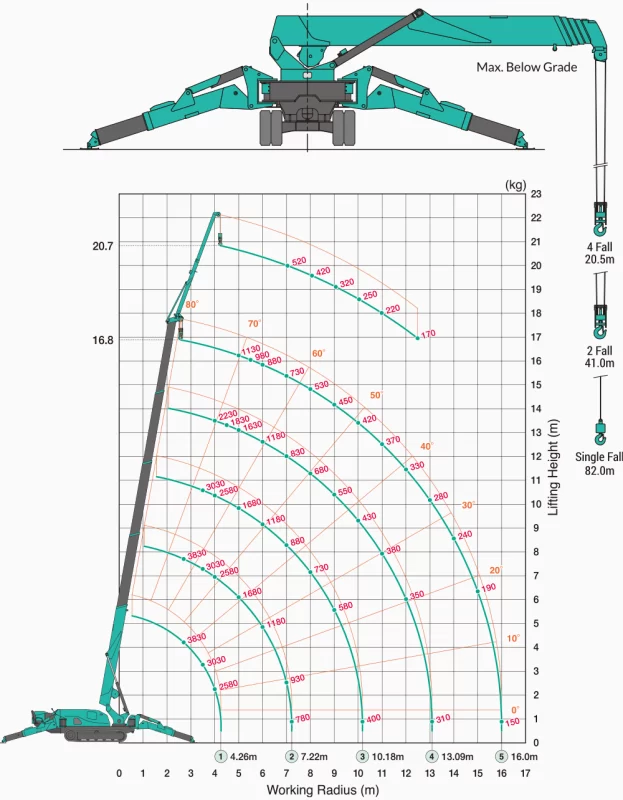

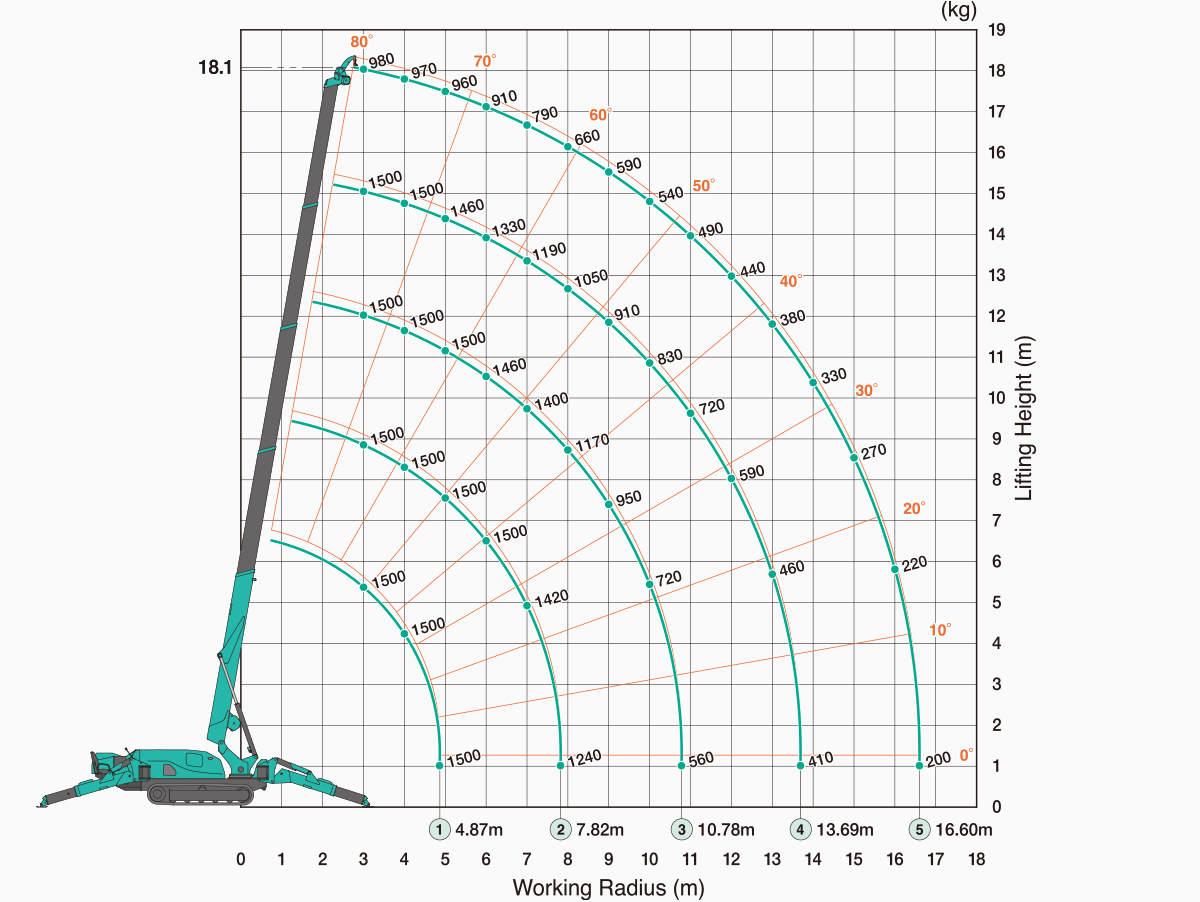

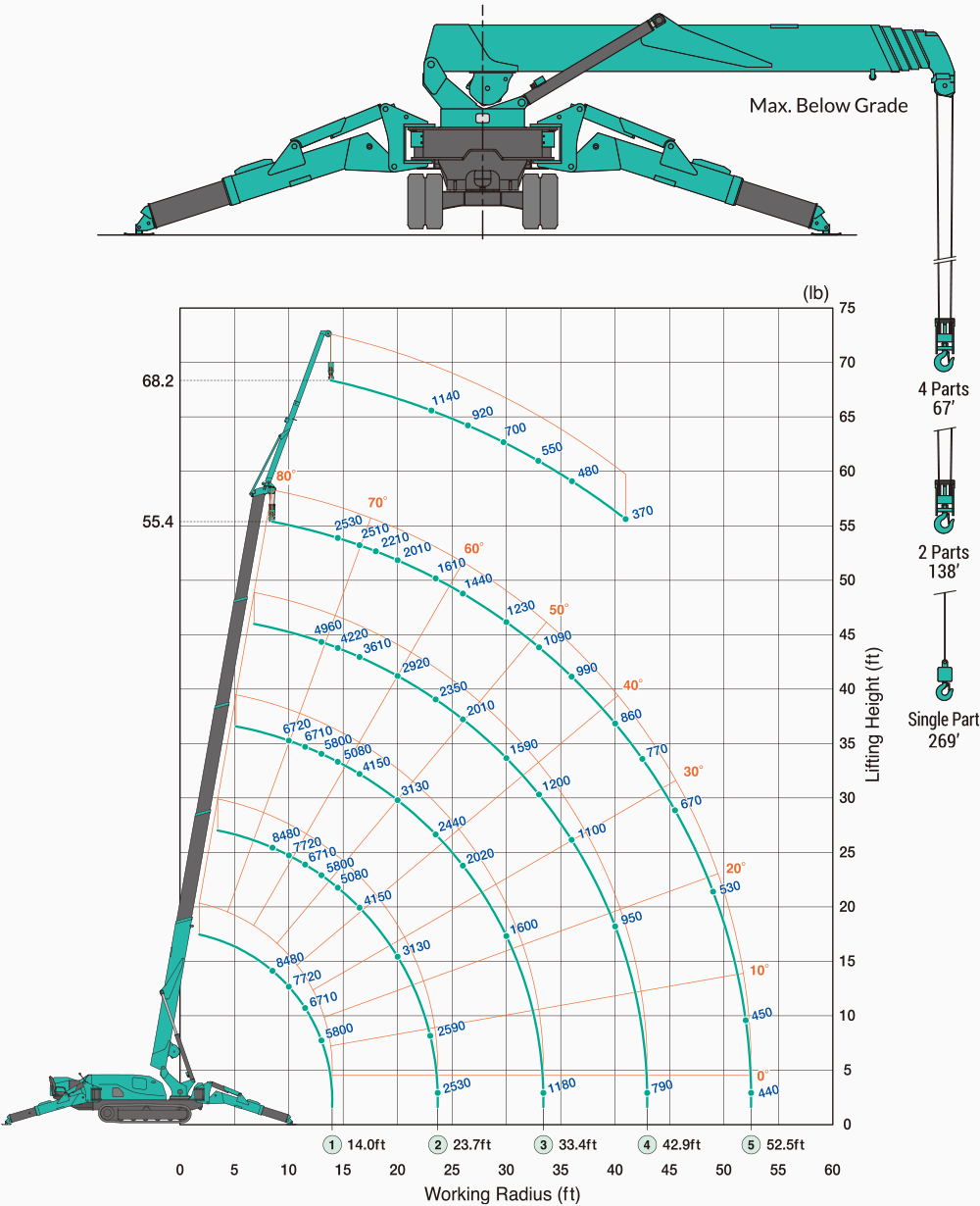

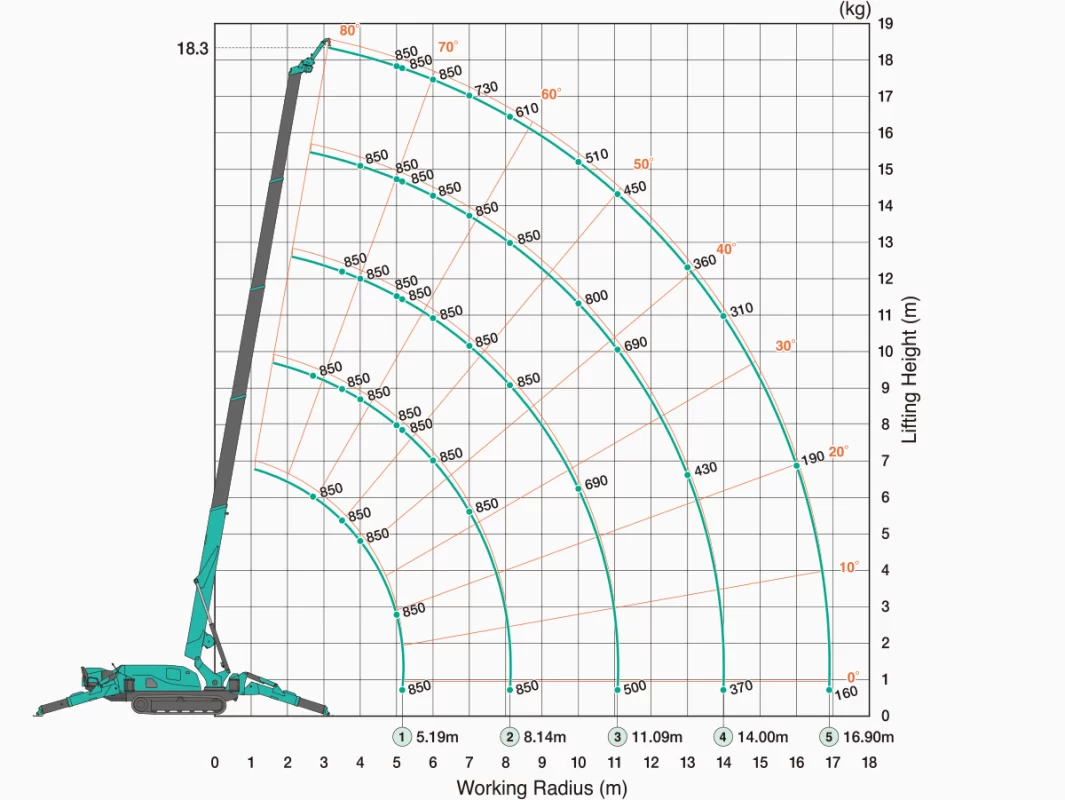

Working Range Chart

Outriggers Position : Max

Outriggers Position : Mid

Outriggers Position : Min

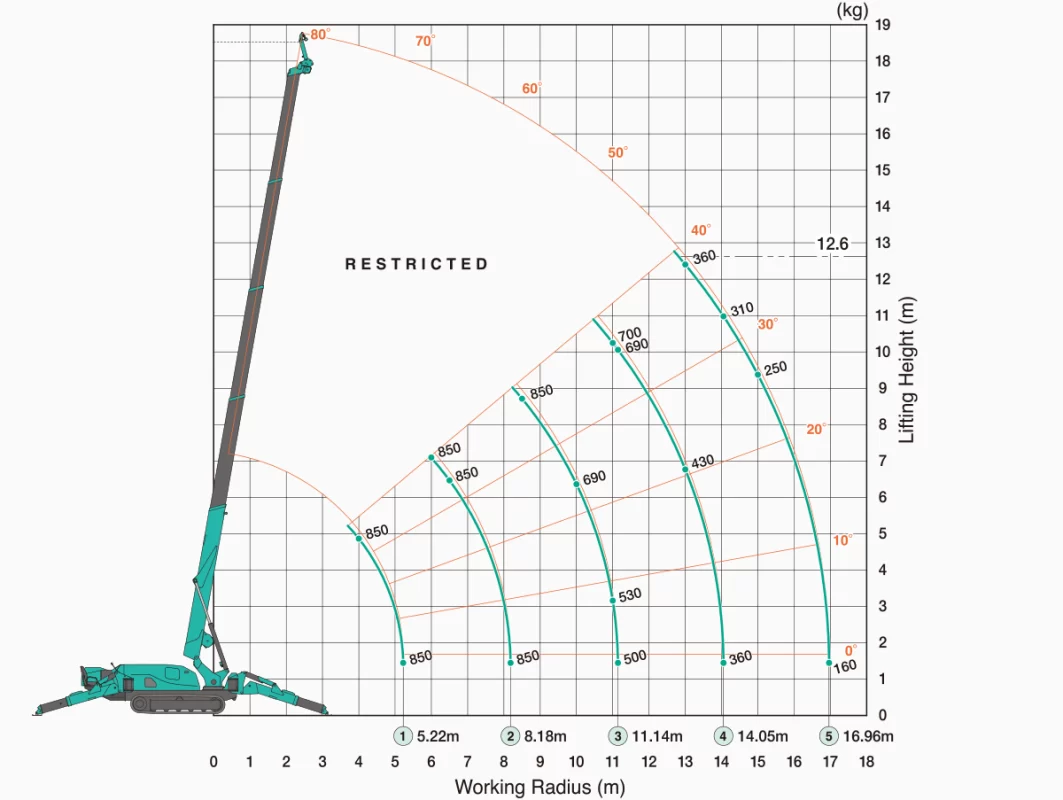

850kg Searcher Hook Offset Position
SH1 (Outriggers Position : Max)

850kg Searcher Hook Offset Position
SH2 (Outriggers Position : Max)

850kg Searcher Hook Offset Position
SH3 (Outriggers Position : Max)

1.5t Searcher Hook Offset Position
SH1 (Outriggers Position : Max)

1.5t Searcher Hook Offset Position
SH2 (Outriggers Position : Max)

1.5t Searcher Hook Offset Position
SH3 (Outriggers Position : Max)

Specifications

Crane Capacity 3.83t × 2.7m
Max. Working Radius 16m × 0.21t
Max. Lifting Height 16.8m
Max. Reach Below Ground -20.5m (4 falls)
Outrigger Max. Extended Width (outer dims) (Lateral)6,076mm x (Front)5,441mm x (Rear)5,829mm
Pick & Carry Capacity 500kg
Travel Speed 0 – 2.9km/h
Travel Ground Pressure (MC405CWM-5) 50.4kpa [0.51kgf/cm2]
Travel Ground Pressure (MC405CWME-5) 51.7kpa [0.53kgf/cm2]
Engine YANMAR 3TNV88F-EPMB / Diesel
Engine Rated Output 17.4kw/2,400rpm
Electric Motor 7.5kw, 3-Phase, 380V
Dimensions 4,980mm (L) x 1,380mm (W) x 1,980mm (H)
Machine Weight 5,640kg (5,790kg with electric motor) (Fly jib: +150kg)

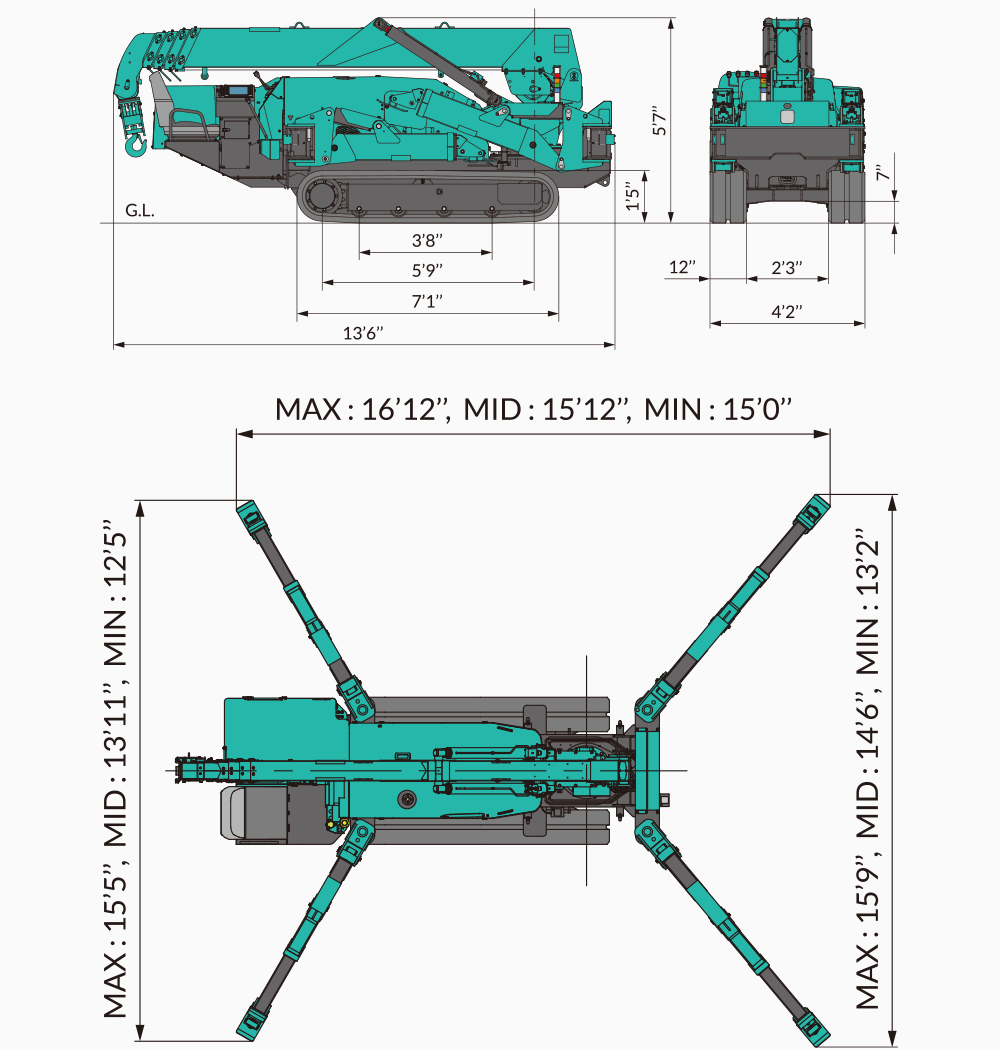

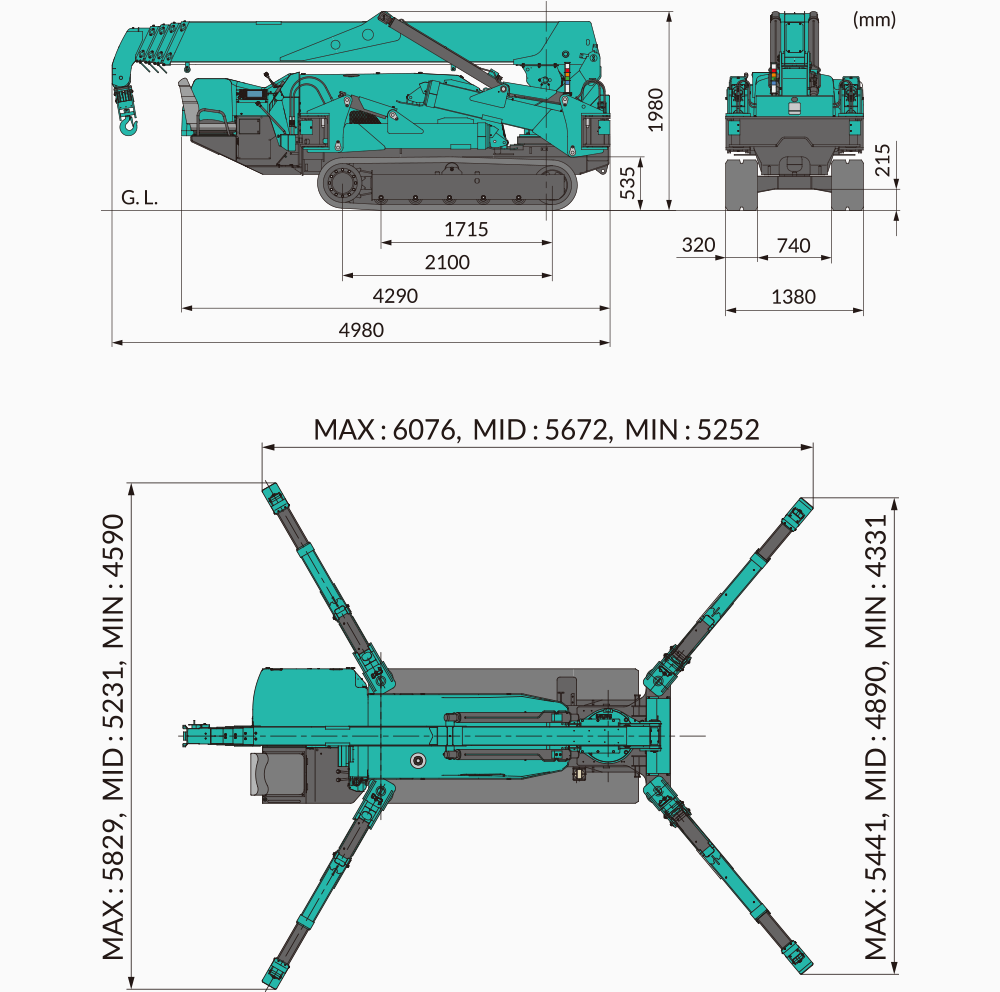

Dimensions

Imperial (US)

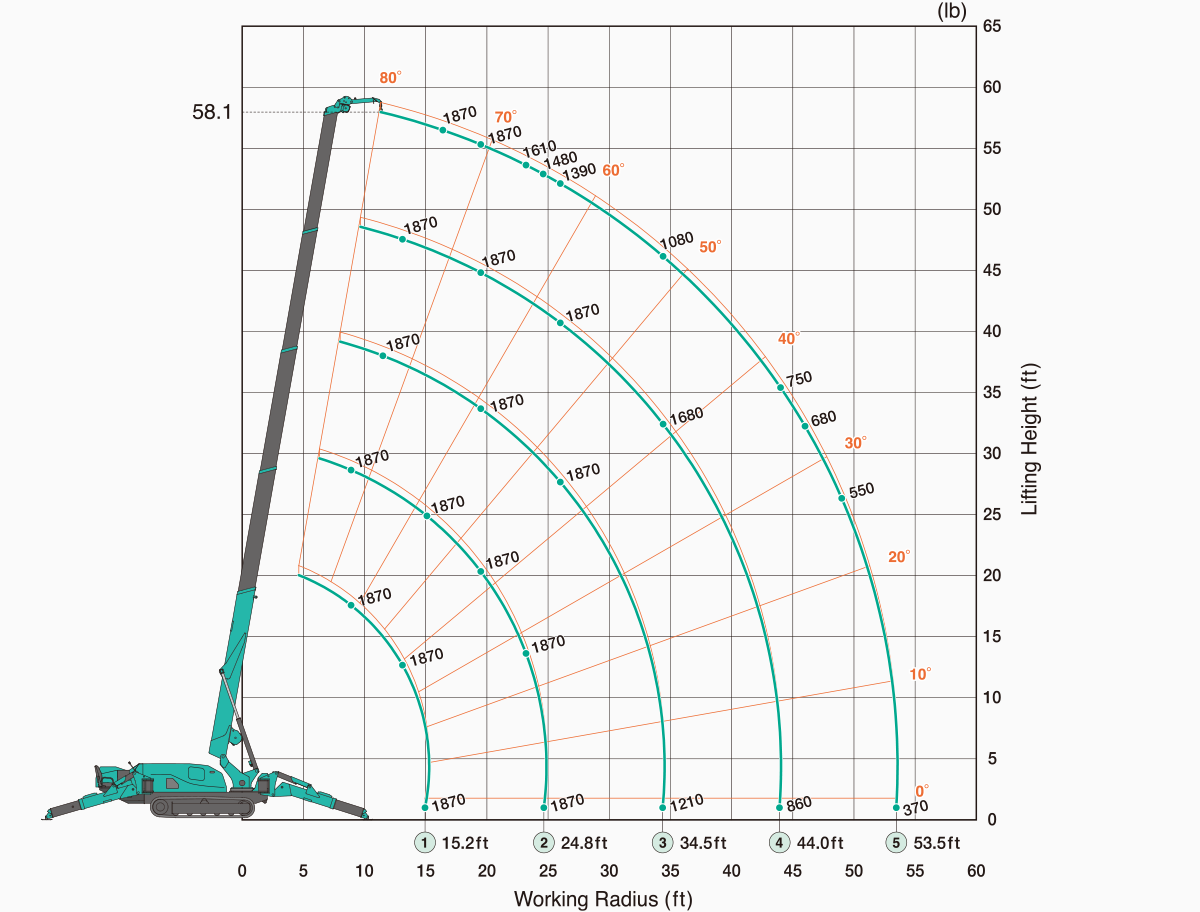

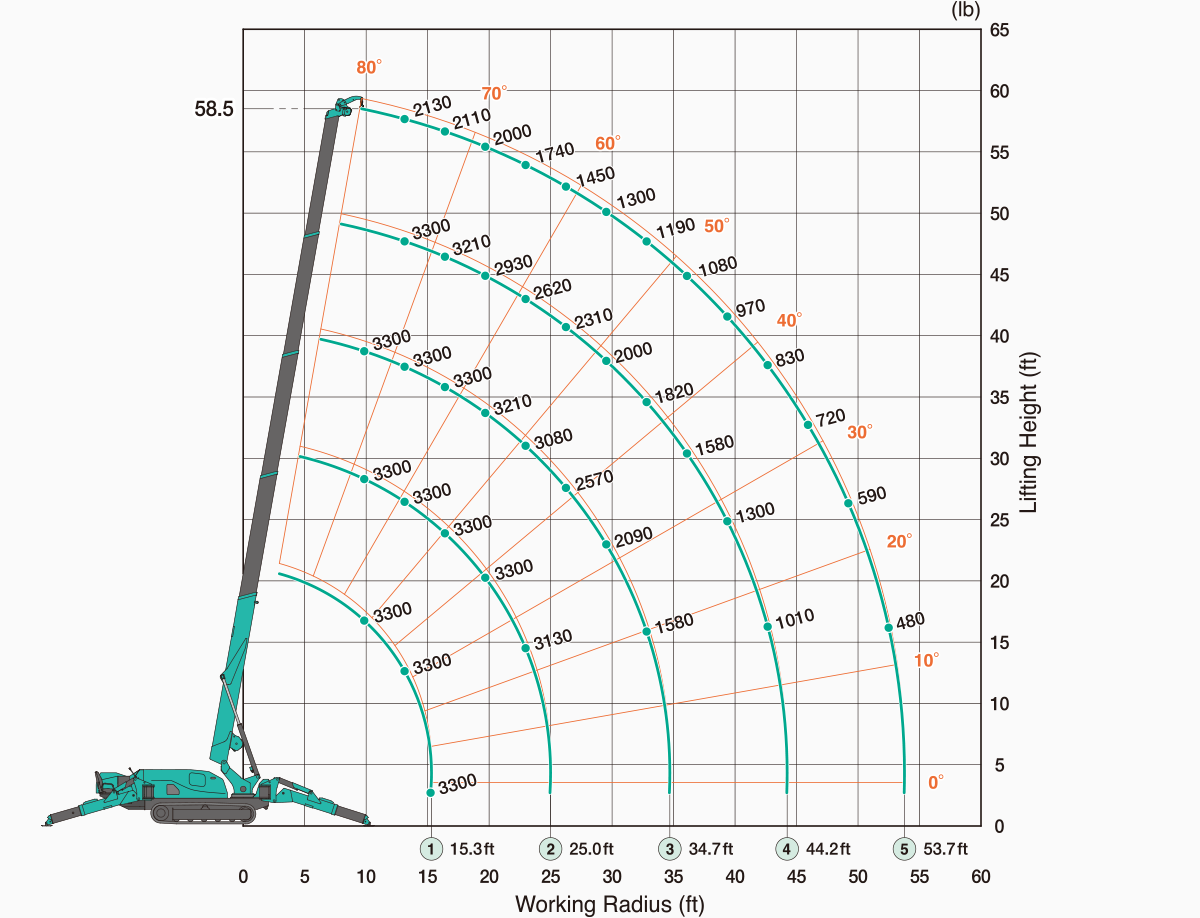

Working Range Chart

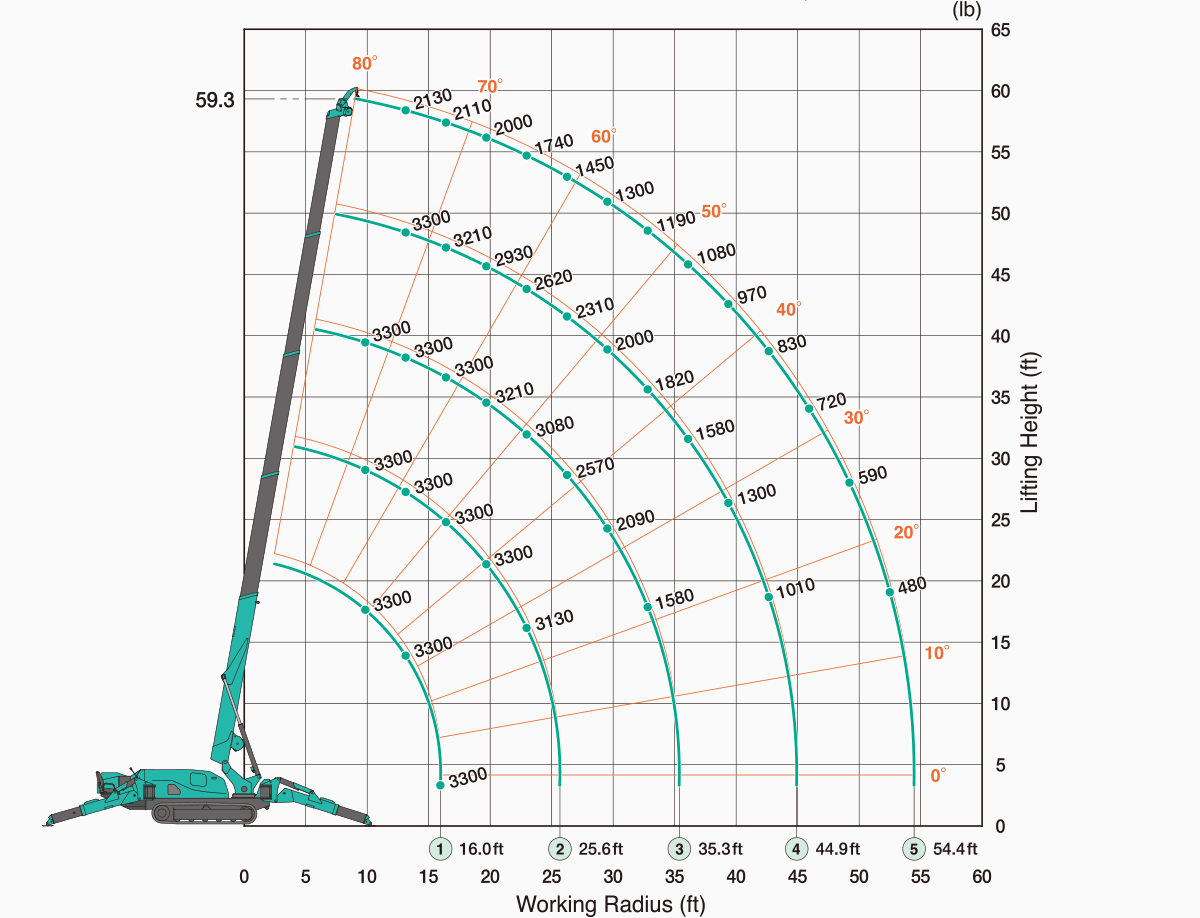

Outriggers Position : Max

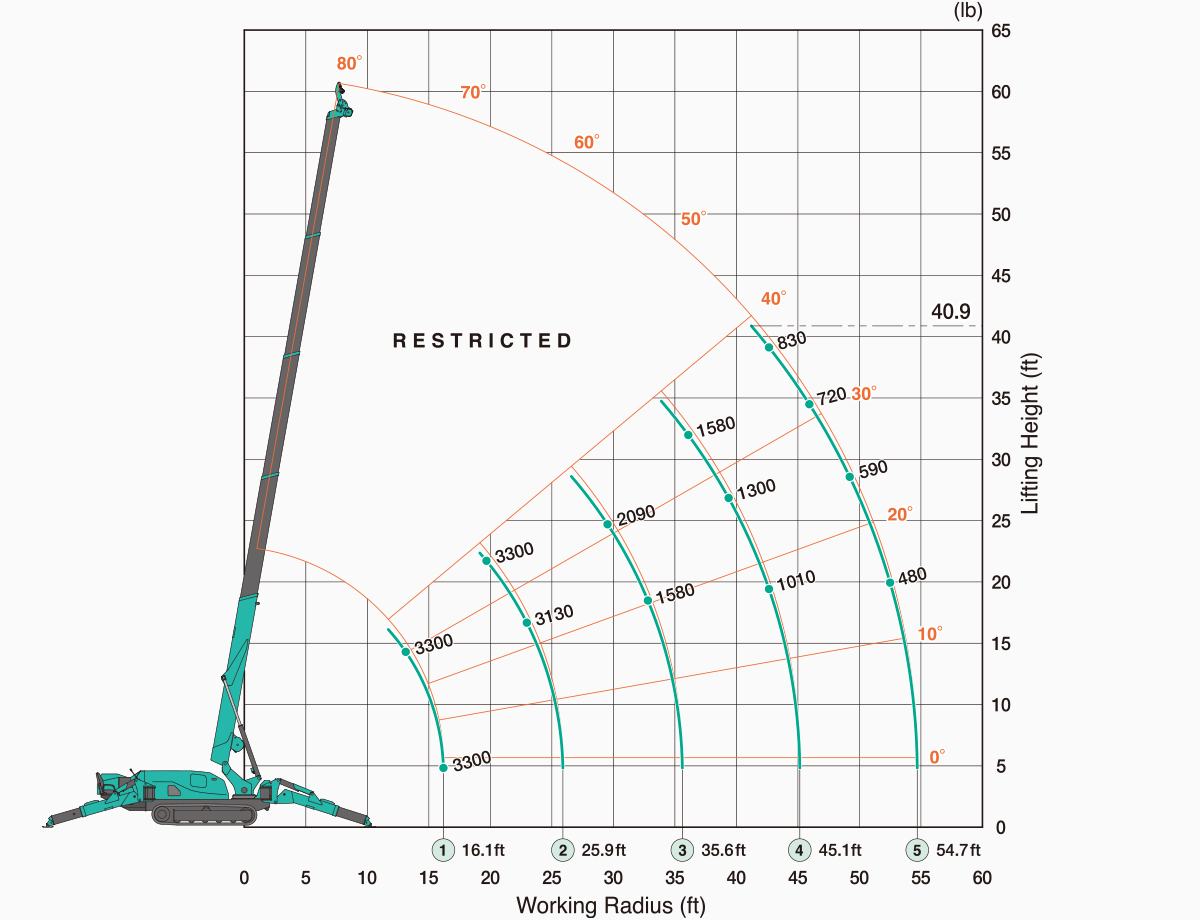

Outriggers Position : Mid

Outriggers Position : Min

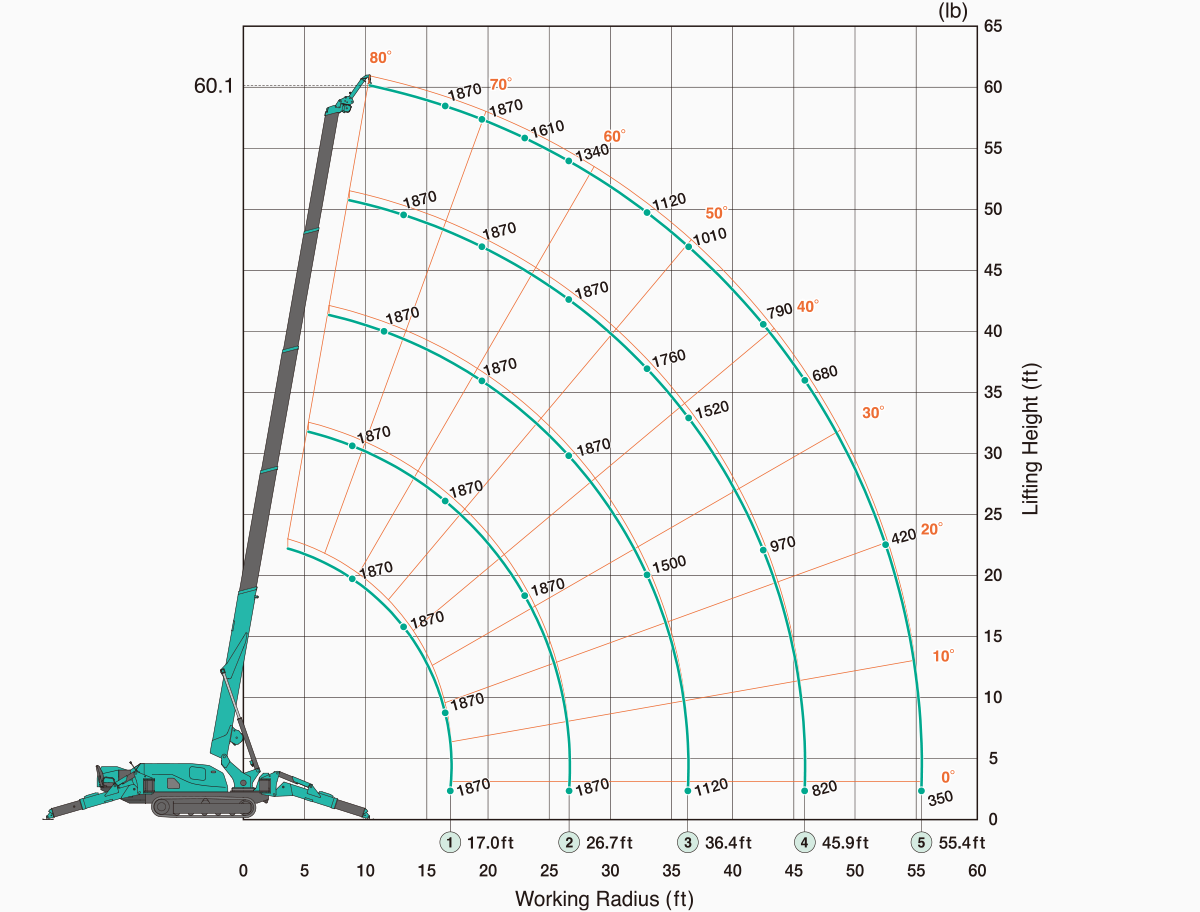

1,870 lb Searcher Hook Offset Position
SH1 (Outriggers Position : Max)

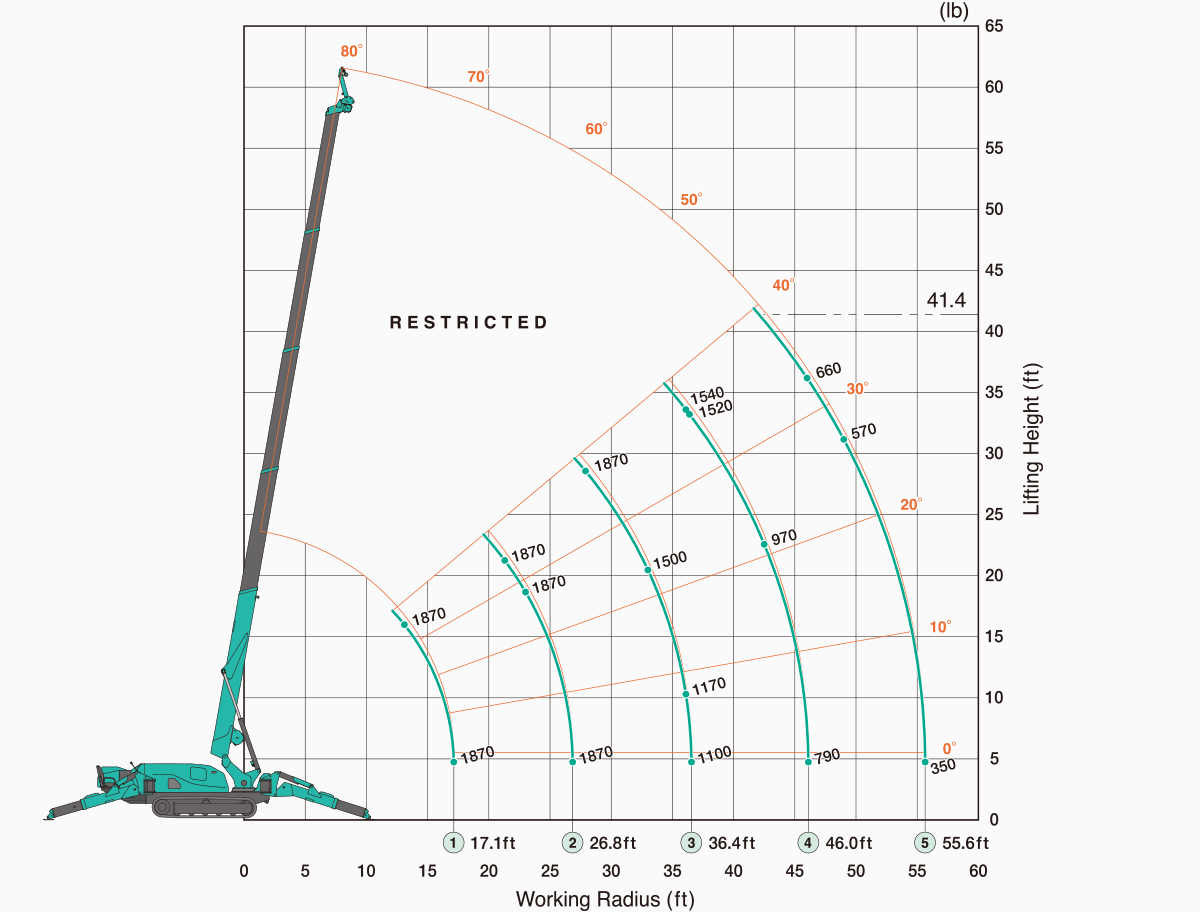

1,870 lb Searcher Hook Offset Position
SH2 (Outriggers Position : Max)

1,870 lb Searcher Hook Offset Position
SH3 (Outriggers Position : Max)

3,300 lb Searcher Hook Offset Position
SH1 (Outriggers Position : Max)

3,300 lb Searcher Hook Offset Position
SH2 (Outriggers Position : Max)

3,300 lb Searcher Hook Offset Position
SH3 (Outriggers Position : Max)

Specifications

Crane Capacity 6,560lb x 8.0′
Max. Working Radius 39.8′ x 570lb
Max. Lifting Height 41.0′
Max. Reach Below Ground -53.0′ (4 parts of line)
Outrigger Max. Extended Width (outer dims) (Lateral)16’12″x (Front)15’9″ x (Rear)15’5″
Travel Speed 0-1.7mph
Travel Ground Pressure (MC305CWM-5) 8.44PSI
Travel Ground Pressure (MC305CWME-5) 8.73PSI
Engine YANMAR 3TNV80F-SNMB / Diesel
Engine Rated Output 20.38hp (15.2kw)/2,500rpm
Electric Motor 5.5kw, 3Phase, 230V
Dimensions 13’6″ (L) x 4’2″ (W) x 5’7″ (H)
Machine Weight 8,750lb (9,060lb with electric motor)

Dimensions

Key Features:

  • Automatic counterweight detection
  • Operator settable maximum working height
  • Maximum working radius
  • Maximum front axle weight
  • Rigging limits
  • Percentage of rated capacity
